Description
| Parameter | Specification |
|---|---|
| Panel Thickness | 3mm, 4mm, 5mm, 6mm |
| Recommended Thickness | 3mm (Interior), 4mm–6mm (Exterior) |
| Aluminium Skin Thickness | 0.21 mm – 0.50 mm |
| Exterior Grade Skin | Minimum 0.30 mm |
| Standard Panel Size | 1220 mm × 2440 mm (4 ft × 8 ft) |
| Panel Width Options | 1000 mm, 1220 mm, 1500 mm |
| Panel Length | Up to 6000 mm (customizable) |
| Core Material | LDPE / Fire Retardant (FR) / Mineral Core |
| Fire Rating | B1 / A2 Grade (FR Panels) |
| Coating Type | PVDF (Exterior) / Polyester (Interior) |
| Coating Thickness | 25–28 Microns |
| Surface Finishes | Matte, Glossy, Brushed, Mirror, Wooden, Marble |
| Aluminium Alloy | AA1100 / AA3003 / AA5005 |
| Tensile Strength | Approx. 140–160 MPa |
| Impact Resistance | High |
| Flatness | Excellent (No visible waviness) |
| Thermal Insulation | Good |
| Sound Insulation | Moderate |
| Weather Resistance | Excellent (UV & corrosion resistant) |
| Operating Temperature | -50°C to +80°C |
| Weight | Approx. 3.5 – 7.5 kg/m² (depending on thickness) |
| Installation System | Cassette / Tray / Rivet Fixing |
| Maintenance | Low (Easy to clean surface) |

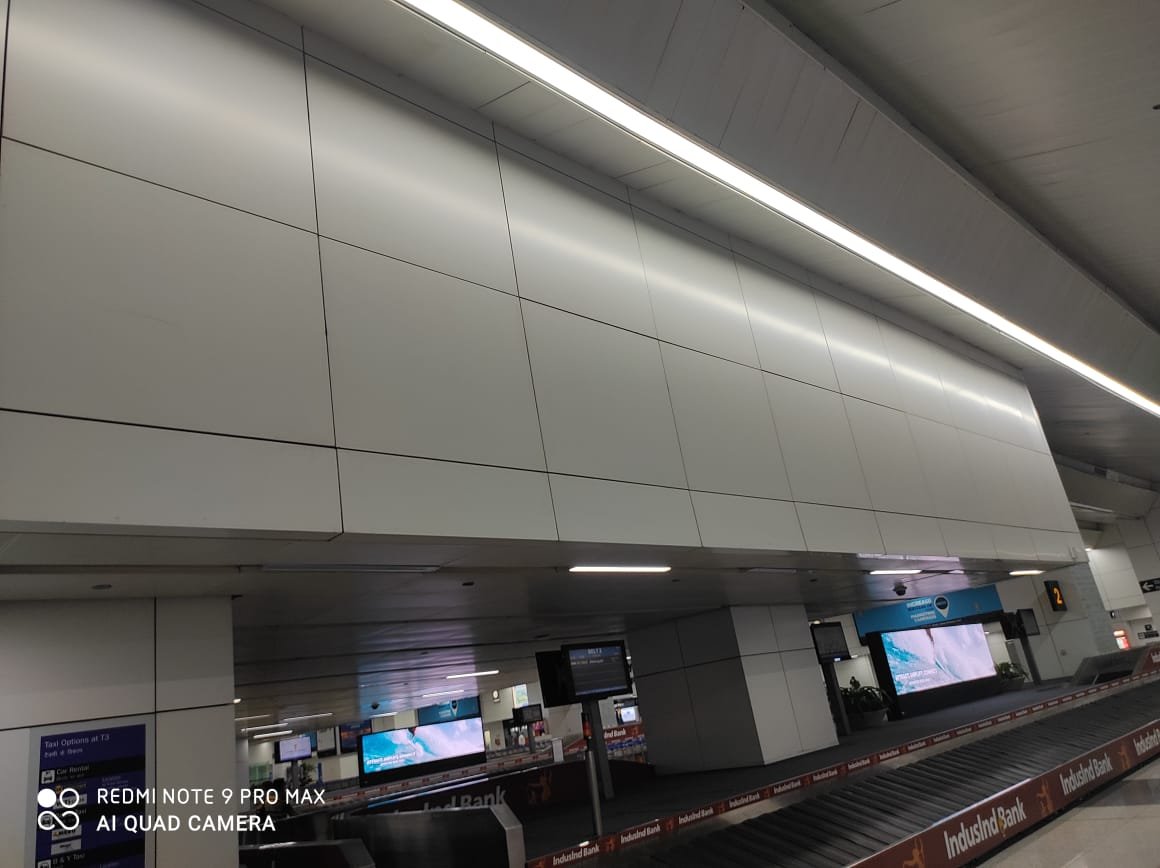

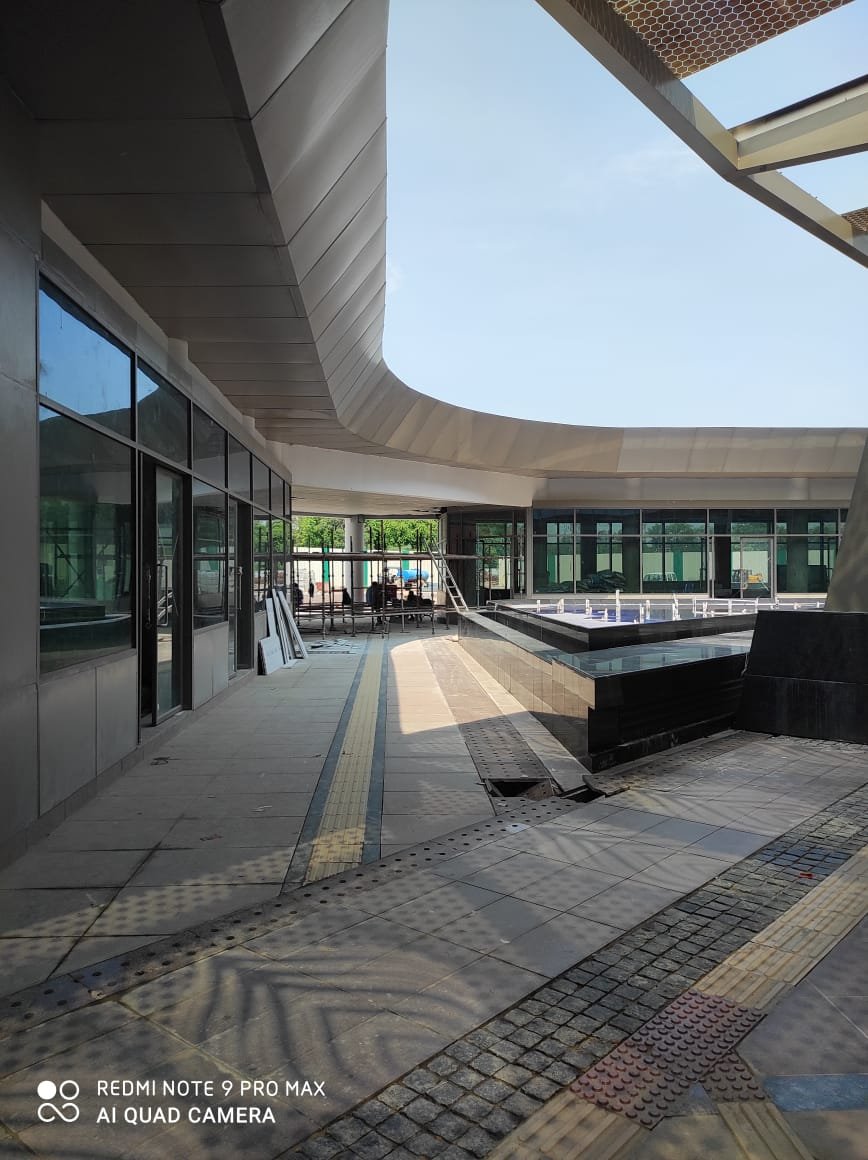

Aluminium Cladding Solutions, commonly known as Aluminium Composite Panel (ACP) Cladding, is a modern architectural system used for exterior and interior wall covering. It consists of sandwich panels made by bonding two aluminium sheets with a non-aluminium core material under heat and pressure.
